Inovix -h project is offering all the appropriate documentation and directions to create your own hardware firewall based on the Mikrotik RouterOS™.
What Mikrotik can do?
MikroTik RouterOS™ is a router operating system and software which turns a regular PC into a dedicated router.
Hardware:
The RouterBOARD IN/G44V is a PCI ethernet card with four gigabit ports.
The MDI/X feature (accepts both cross-over and straight cables) can now be used on your router or server.
The IN/G44V device integrates four 10/100/1000Mbps Gigabit Ethernet ports into one card that is an ideal solution for connecting many networks to one router or for extending your network. The IN/G44V is an improved version of the RB44 gigabit four port PCI interface. This new card is based on the VIA VT6122 chipset. It supports MDI-X auto cross/straight cable detection, 10/100/1000 speeds and can be used in any operating system which has drivers for VT6122, including Windows, Linux and RouterOS.
RouterBOARD IN/G44V
|
|
|---|---|
Chipset: |
VIA VT6122 |
Ports: |
4x 10/100/1000Mbit |
Features: |
MDI/X: cross/straight cable detection |
Standard: |
IEEE 802.3 10BaseT; IEEE 802.3u 100BaseTX Fast Ethernet; VLAN 802.1q |
OS: |
RouterOS, Windows, Linux, BSD |
Power Consumption: |
8W |
Size: |
107 x 124 x 19 mm |

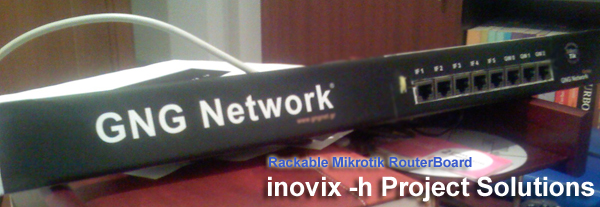

Inovix -h project Solutions can construct for you a custom rackable self powered (with no need of a computer to host it) RouterBOARD painted and with your logo or letters writen on it. It can be purchased for the low amount of 400€ and can be programmed in accordance with your needs. See our custom project here
- Contact us for an arrangement of construction and price deal -
